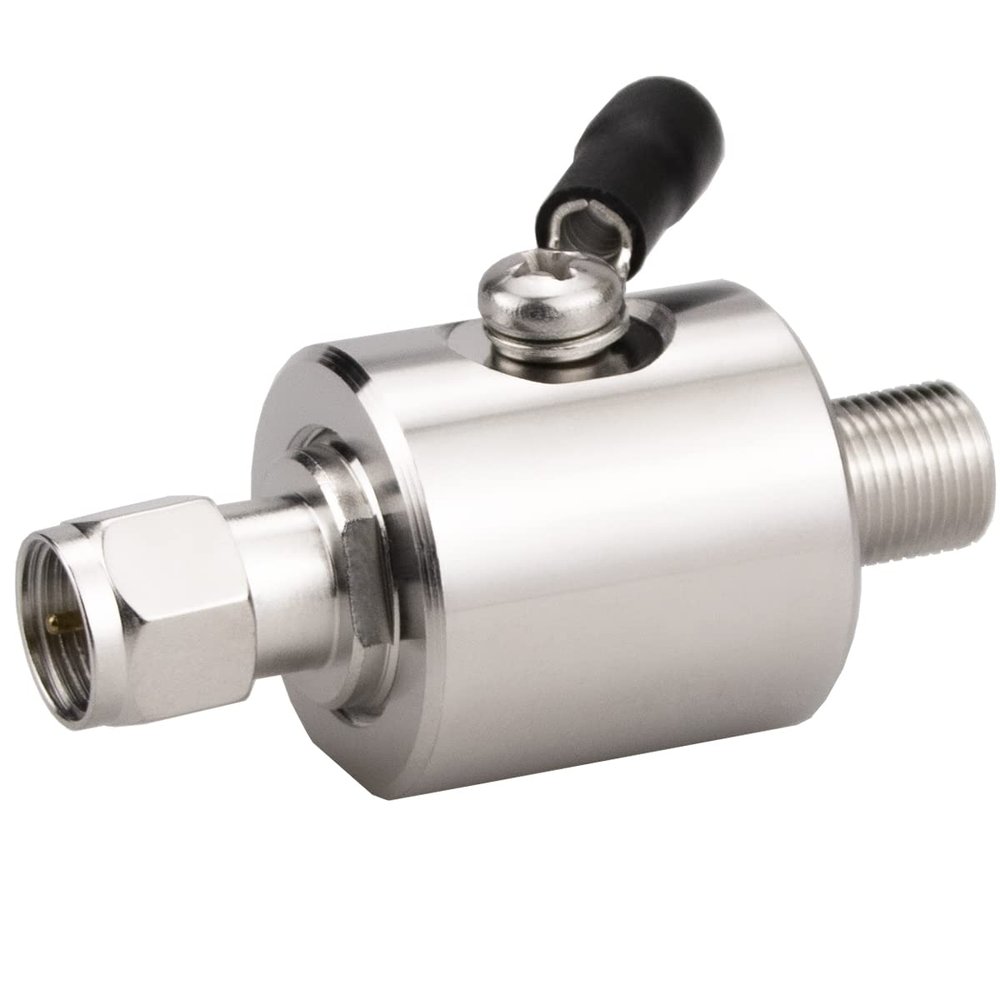

Whisary F Type Lightning arrestor Male to Female 75 ohm Cellular 2G 3G 4G LTE CATV Satellite with 90V Gas Tube Coaxial Lightning

Description

• 1.The 75 Ohms F Type coaxial lightning aresstor is compatible with 75 Ohm Cellular Boosters, protects signal boosters CATV, Satellite Cable, TV antennas from lightning strikes.
• 2.F type male to female Connectors 75 ohm in two side, broad bandwidth DC-3 GHz Covers 2G 3G 4G LTE Cellular and SATV , Attenuation less than 0.2 dB / VSWR less than 1.2
• 3.DC Pass for Remote Powering of Amplifiers and LNA's
• 4.It is with a replaceable 90V Gas Discharge Element with High Surge Power Capability and Bi-directional Protection
• 5.F Surge protector should be installed as close a possible to the equipment to be protected, often at the point where the coax cable enters the building. They can also be installed near the antenna for additional protection

Electricail Characteristics
Connector Types: F-Male to F-Female
Frequency Range: DC-3 GHz
Low loss:<0.2db
Low VSWR:<1.2
Impedance: 75 ohm
Discharge Voltage: 90V
Contact Resistance:Center conductor 1.5m, Outer conductor 1m
Max Power:50W
discharge current capacity(kA@8/20S):10
Insulation Resistance : 5000M Durability : 500 cycles
Temperature Range: -40~85
Material:
Body Brass nickel plated
Teflon(PTFE) insulator
Package:
1 x F type Male to female Coax Lightning Arrestor
