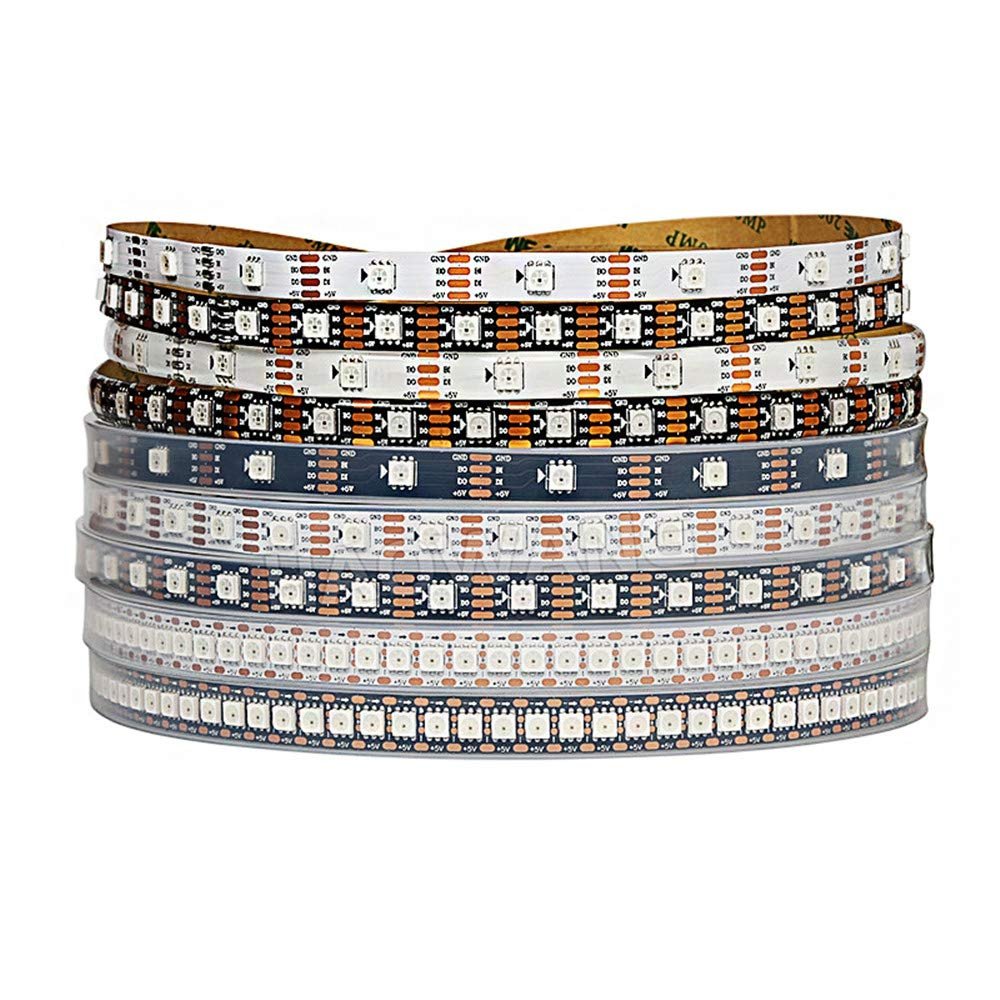

WS2813 led Strip addressable Dual Signal Individually Pixel 3 144 LEDs Black PCB DC 5V IP67 Waterproof Flexible RGB Light Strip 1m

Description

• Black PCB,ws2813 RGB
• 1M,DC5V,IP67
• LED Light Source: WS2813 LEDs ( Same Protocol as WS2811S But With Dual-Signal Wires,So Can Be Controlled by the Same WS2811/ws2812 Controllers)
• One pixel damaged will not affect the other LEDs'working, Dual signal wires version, Signal can jump to transfer
• Connector: 4PIN connector terminal pair (Red: 5V power, Green: Date line, Blue: standby date line, Black: GND)

Pay Attention:

1, 30,60,144 means: 30 Leds/m, 60 Leds/m, 144 Leds/m

2, IP30 Non-Waterproof / IP65 Waterproof in Silicon Coating / IP67 Waterproof in Silicon Tube

3, IP30 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive)

4, Each strip with one free male connector for, The length of the strip as you choose

Main feature:

One pixel damaged will not affect the other LEDs'working, Dual signal wires version, Signal can jump to transfer

FEATURES:

LED Light Source: WS2813 LEDs ( Same Protocol as WS2811S But With Dual-Signal Wires,So Can Be Controlled by the Same WS2811/ws2812 Controllers)

Input Voltage: DC 5V

Power: 30 Leds/M --- 9 Watt/Meter / 60 Leds/M --- 18 Watt/Meter / 144 Leds/M --- 43.2 Watt/Meter

LED Resource: WS2813 led (5050 SMD RGB LED with built-in improved version of ws2811 ic)

LED: Each LED is separately controlled

IC Type: Improved version ws2813 IC(built inside the 5050 smd rgb led)

Of IC: (1 IC drives 1 led chip)

Pixels: 30Leds/60Leds/144Leds/meter

Pitch: 16.6mm(1000/64)

Grey Scale: 256

Colors: Full color RGB, dream color changing

Bits/Color: 8-Bits/Color

FPC Color: BLACK / White

FPC Width: 30 Leds/M --- 10 MM / 60 Leds/M --- 10 MM / 144 Leds/M --- 12 MM

Cuttable: Every LED is cuttable

Package: In anti-static bag, IP30 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive), each strip with one free male connector for connector

Working Temperature: -40 - 70 C

Storage Temperature: -50 - 80 C

Source Life: 50,000 hours

Connector: 4PIN connector terminal pair (Red: 5V power, Green: Date line, Blue: standby date line, Black: GND)

Recommand controllers: T-1000s,T-8000A;T-100K;T-200K;T-300K
