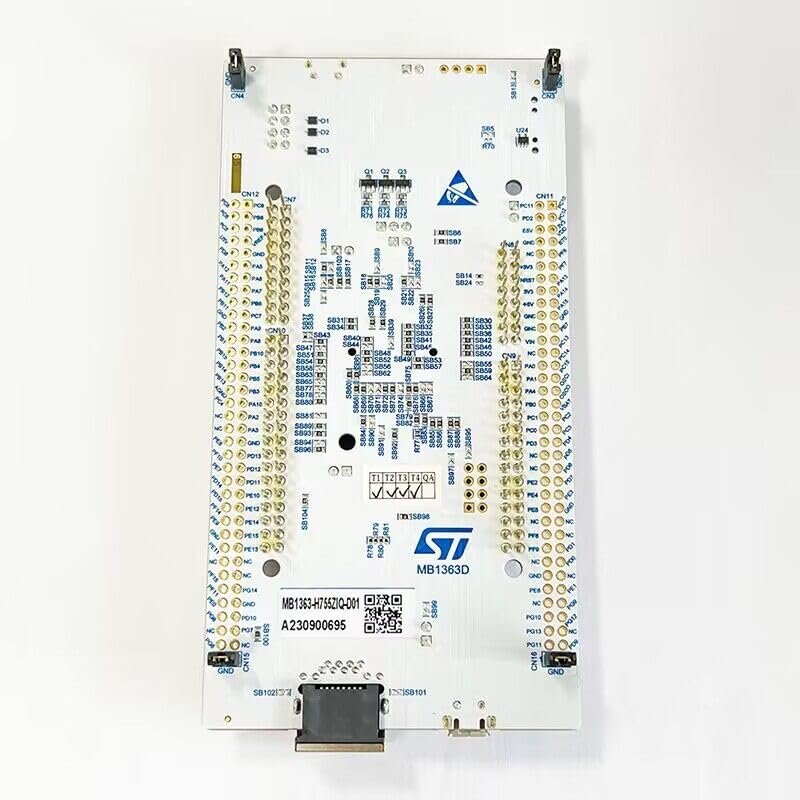

XFCZMG NUCLEO-H755ZI-Q ARM STM32 Nucleo-144 Development Board with STM32H755ZI MCU

Description

• Common features STM32 microcontroller in LQFP144 package 3 user LEDs 2 user and reset push-buttons 32.768 kHz crystal oscillato
• Board connectors: SWD ST Zio expansion connector including ARDUINO Uno V3 ST morpho expansion connector
• Flexible power-supply options: ST-LINK, USB VBUS, or external sources On-board ST-LINK debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port Comprehensive free software libraries and examples available with the STM32Cube MCU Package Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench, MDK-ARM, and STM32CubeIDE
• Board-specific features External or internal SMPS to generate Vcore logic supply Ethernet compliant with IEEE-802.3-2002 USB OTG full speed or device only Board connectors: USB with Micro-AB or USB Type-C Ethernet RJ45 Arm Mbed Enabled compliant

Description:
The STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode. The ST Zio connector, which extends the ARDUINO Uno V3 connectivity, and the ST morpho headers provide an easy means of expanding the functionality of the Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo-144 board does not require any separate probe as it integrates the ST-LINK debugger/programmer. The STM32 Nucleo-144 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.
