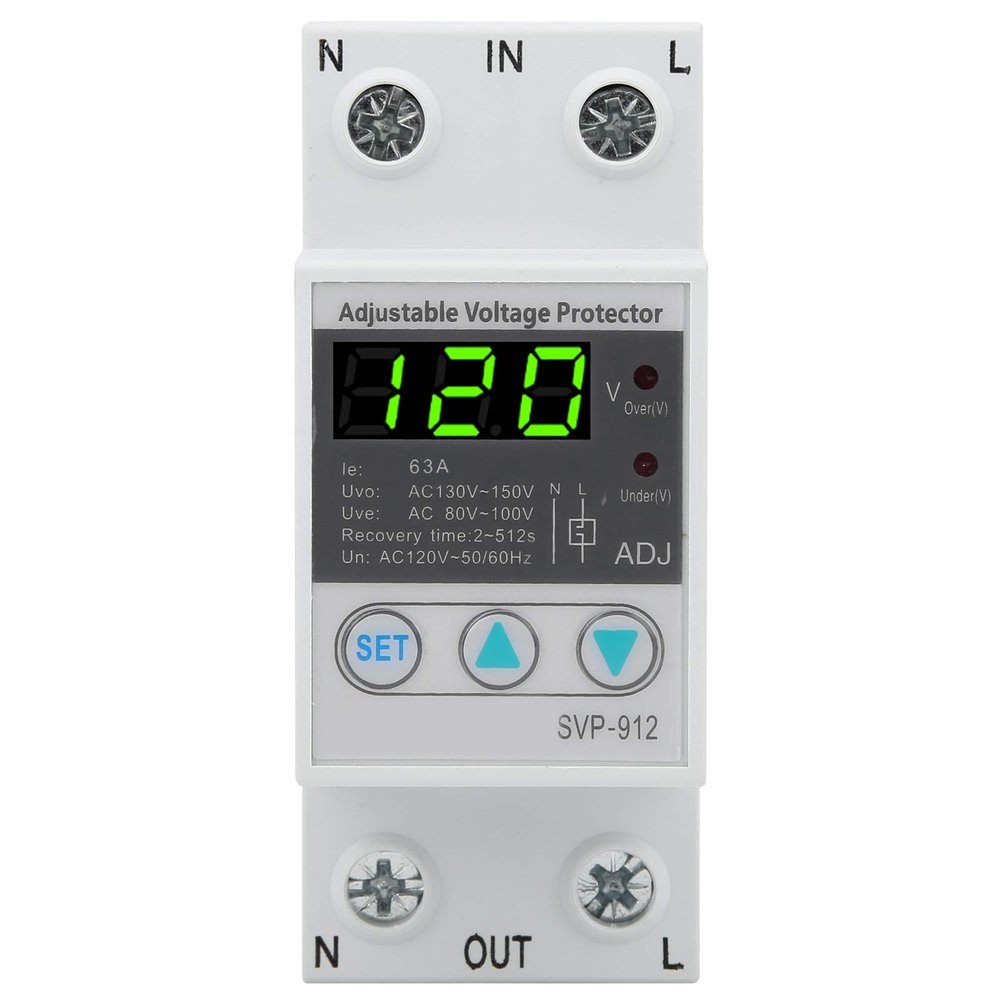

Yctze 120VAC Adjustable SelfRecovery Under Voltage Automatic Reset Switch for Electrical Management and (63A)

Description

• Description :Has overvoltage , undervoltage and voltage display (voltage measurement), safer and to use.
• Universal compatible :Both the undervoltage value and the undervoltage recovery value are adjustable, and the undervoltage action time is adjustable.
• Voltage Current Protector Voltage Protector Relay Automatic Reset Switch Under Voltage Relay with LED Display 120VAC (40A)
• SUPPORT RESET MODE SELECTION: Voltage Recovery supports reset mode selection, fault query and factory reset function, can bring you more convenience.
• Description :Has overvoltage , undervoltage and voltage display (voltage measurement), safer and to use.

1. Has overvoltage , undervoltage and voltage display (voltage measurement), safer and to use.
2. Both overvoltage and overvoltage recovery values are adjustable, and the overvoltage action time is adjustable.
3. Both the undervoltage value and the undervoltage recovery value are adjustable, and the undervoltage action time is adjustable.
4. The fault recovery delay time and poweron delay time are adjustable for better performance.
5. This current protector has the function of reset mode selection, fault query and factory reset.

Specification:
Condition: brand new
Item Type: Current protector
Color: As pictures shown
Material: Plastic
Optional Specification: 40A, 63A, 80A
Model: SVP-912
Rated Voltage: 120VAC 50 / 60Hz
Rated Current: 40A, 63A, 80A
Overvoltage Value Range: 130V-150V-OFF adjustable (default 140V)
Overvoltage Recovery Value: Adjustable from 129V to 149V (default 250V)
Overvoltage Action Time: 0.1-10s (default 0.1s)
Undervoltage Value Range: Adjustable from 100V-80V-OFF (default 90V)
Undervoltage Recovery Value Range: 81V-99V (default 95V)
Undervoltage Action Time: 0.1-10s (default 0.1s)
Failure Recovery Delay Time: 2-512s (default 60s)
Delay Time after Power-On: 2-255s (default 2s)
Power Consumption: 2W
Electrical Machinery Life: 4000 times
Size: Approx.81 x 36 x 60mm/3.2x1.4x2.4in
Install DIN Rail
Working Environment Temperature: -25-+40
Humidity: Altitude: 2000m/6561.7ft
Features:
1. Overvoltage
2. Undervoltage
3. Voltage display (voltage measurement)
4. Overvoltage value is adjustable
5. Overvoltage recovery value is adjustable
6. Overvoltage action time is adjustable
7. Adjustable undervoltage value
8. Adjustable undervoltage recovery
