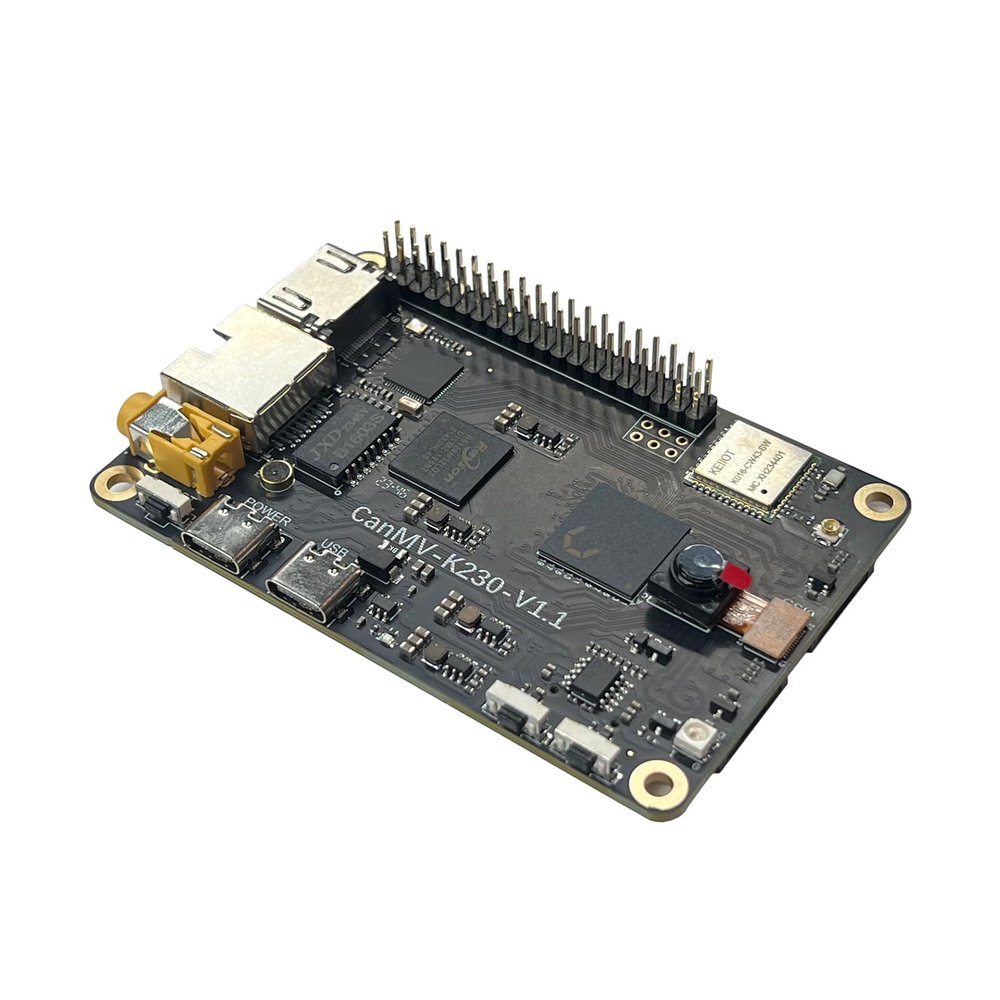

youyeetoo CanMV-K230 AI Development Board - Kendryte K230 RISC-V 64-512MB RAM 3X 4K Camera Inputs - Support RVV1.0 for AI Edge AIoT (Basic Kit)

Description

• CanMV-K230 is a credit card-sized development board for AI and computer vision applications based on the Kendryte K230 dual-core C908 64-bit RISC-V processor with built-in KPU (Knowledge Process Unit) and various interfaces such as MIPI CSI inputs and Ethernet.
• Shipping List(Basic Kit): 1* CanMV-K230, 1* Camera, 1* Type-C Cable for Power / Debug, 1* 2.4G/5G Antenna
• SoC: Dual-core C908. High-performance AI acceleration unit (KPU), AI performance is 13.7 times that of K210
• AI multi-modal: vision/speech/OCR/translation NMT support, and complete AI development tools
• Support RVV1.0. Support Three 4K HD camera inputs. Integrated DPU Full HD 3D depth engine, supports 1080P resolution
• Built-in dozens of AI algorithms, such as: face recognition, color recognition, etc. Provide schematic, PCB and other hardware design information, provide SDK, provide chip manuals.

CanMV-K230 specifications: SoC Kendryte K230CPU64-bit RISC-V processor @ 1.6GHz with RISC-V Vector Extension 1.0, FPU 64-bit RISC-V processor @ 800MHz with support for RV64GCB instruction set; AI acceleratorKPU with support for INT8 and INT16 Compatible with TVM, TensorFlow, Pytorch, ONNX Typical network performance: Resnet 50 85fps @ INT8; Mobilenet_v2 670fps @ INT8; YoloV5S 38fps @INT8; DPU using 3D structured light depth calculation up to 1280800 @ 30fps VPU Video encoding/decoding for H.264/H.265/JPEG/MJPEG up to 4Kp40/4Kp20 System Memory: 512MB LPDDR3 Storage QSPI flash, microSD card slot Display HDMI port, MIPI DSI connector up to 1080p60 Audio 3.5mm audio jack Camera Up to 5MP camera, up to 3-ch MIPI CSI inputs Networking 10/100Mbps Ethernet RJ45 port
WiFi 4 and Bluetooth 4.0 via AP6212 wireless module USB 1x USB 2.0 OTG Type-C port port Expansion 40-pin GPIO header with up to 29x GPIOs, 5x PWM, 4x I2C, 2x UART Misc Buttons, RGB LED Power Supply 5V via USB-C port Dimension 85 x 56 mm Support:
