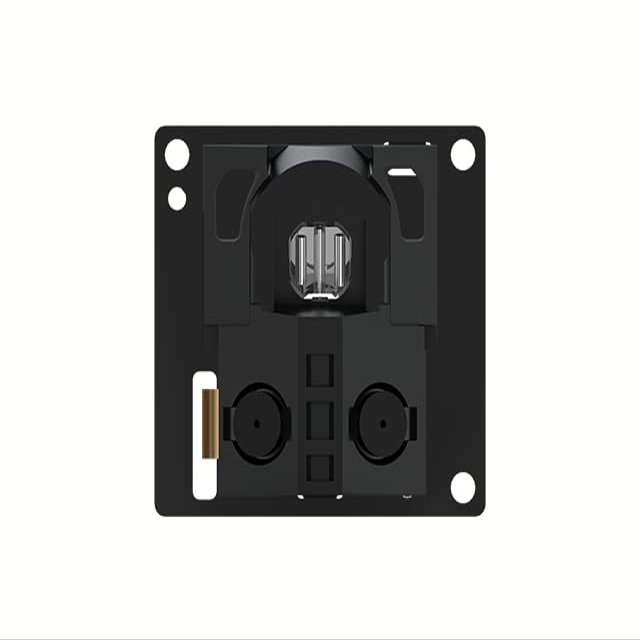

youyeetoo YDLIDAR GS2 Solid State Lidar Sensor,100 Wide Angle Two wavelengths,Solve The Blind Spot of Robot Scanning(808nm wavelength Version)

Description

• [Wide detection range]The lidar sensor GS2 is Solid State Laser Sensor,provide FOV 100 ,Provides 808nm and 850nm two waveband options, the detection signals do not interfere with each other, and can be used together.
• [Small detection range blind area]The lidar sensor GS2 Detectable distance is 25mm~300mm
• [Good obstacle avoidance effect] The smallest object lidar sensor GS2 with a diameter of 3mm can be detected
• [25.6x23.6x10.9mm] The lidar sensor GS2 Can be flexibly integrated into various small smart devices, fully satisfying the detection needs of sweeping robots and service robots.
• [Application] The robot avoids obstacles along the wall.
• [Wiki] https://youyeetoo.com/blog/ydlidar-gs2-eadpgs2w850-131; any questsion or suggestion , please feel free to click "youyeetoo" to ask.
• [Debug USB Adapter] ASIN: B09ZKYMQX5

Product Features
High accuracy, stable performance
High resolution of ranging angle, up to 0.6 degrees
Good obstacle avoidance effect, the smallest object with a diameter of 3mm can be detected
Wide detection range, no blind zone in combination, FOV up to 100 degrees
Small detection range blind area, detectable distance is 25mm~300mm
10000h Service life
Shipping list:
GS2 lidar*1(Standard version of the GS2 lidar. )
[optional]development kit:[ASIN:B09ZKYMQX5]
-USB Type-C Cable*1(Use with USB adapter board to connect GS2 and PC. USB cable is both a power supply cable and a data cable)
-USB Adapter Board*1(Realize the function of USB to UART, which is convenient for the fastinterconnection between GS2 and PC.)Note:
USB Adapter board has two USB TYPE C interface: USB_DATA, USB_PWR.
USB_DATA: Data powered interface. In most cases, this interface can be used to meet power and communication requirements.
USB_PWR: Auxiliary power supply interface. The USB interface of some development platforms has weak current drive capability. At this time, auxiliary power supply can be used.

If you have any questions, you can also leave a message. At the same time, we have a research and development team that can provide customized services.
