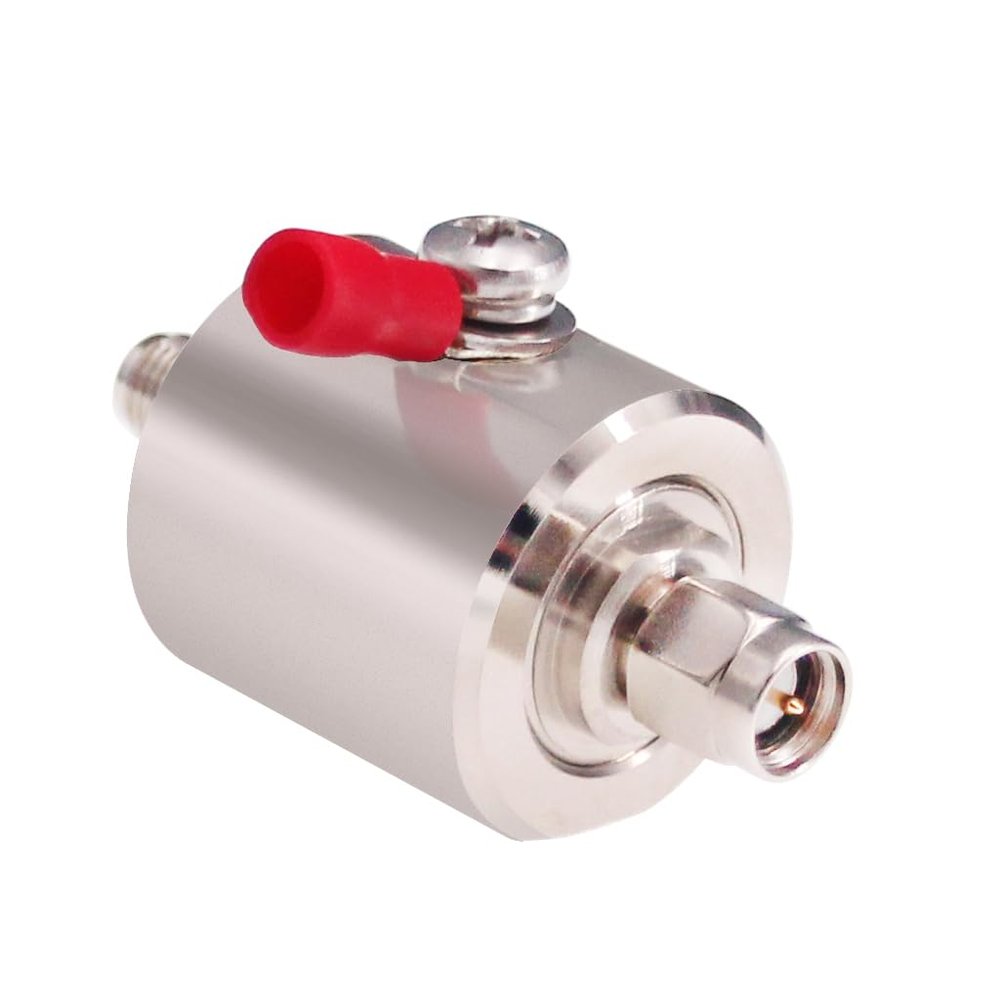

Yuelulala 1pc Coaxial Lightning Arrestor SMA Lighting Protection Device SMA Male to Female Connector DC-3Ghz 50 Ohms(L06)

Description

• Lightning Arrestor SMA Male to SMA Female Connectors
• Low Loss and VSWR and 50 Ohms Impedance
• Operating Frequency DC-3 GHz, DC Pass for Remote Powering
• Protect your amplifier system from lightning strikes by installing lightning arrestor between amplifier and outdoor antenna
• Used for CCTV camera, video system, Ham radio gear, CB antenna, two-way radio, scanners and more

It has standard 50 Ohm with SMA-Male to SMA-Female coaxial connectors.
It is a coaxial SMA Surge Protector, operates over the frequency range of 0-3 GHz.
Designed to be placed between amplifier and outside antenna cable connection, need to be grounded. (DC Pass)
Protect your amplifier and boosted devices from power surges typically caused by lightning strikes to outdoor antennas.

Material:
Body: brass nickel plated
Pin: Body brass gold plated
Insulator: Teflon(PTFE)

Specifications:
Connectors: SMA Male to SMA Female
Impedance: 50 ohm, specifically for 50 ohm systems
VSWR: 1.2
Insertion Loss: 0.2dB
Frequency Range: DC - 3 GHz
Temperature range: -40C to +85 C
Insulation Resistance: 5000M Durability: 500 cycles
Contact Resistance: Center conductor 1.5m, Outer conductor 1m

Package Include:
1pc SMA Male to Female Lightning Arrestor surge protector
